Pole mount EV charger

Skybolt

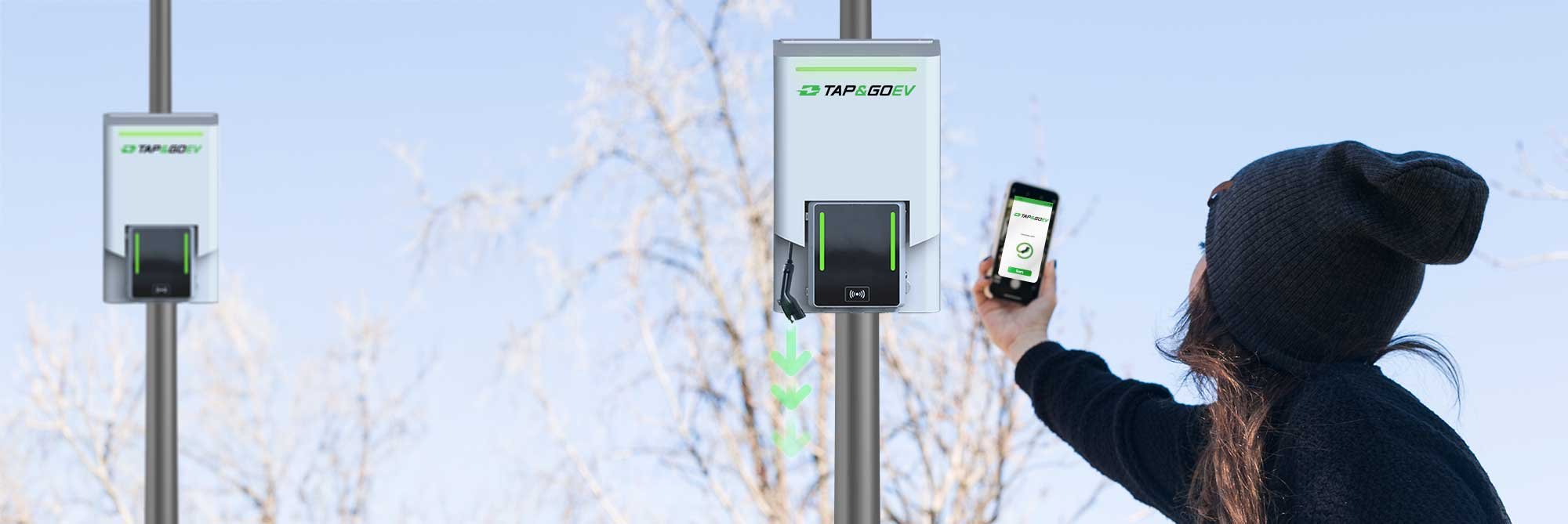

The Skybolt is a utility-grade Level 2 charger designed to connect directly to overhead distribution lines, making it ideal for curbside, roadside, and other large-scale public installations. When a vehicle with a 5-meter RFID sticker placed on it approaches, the charger detects it automatically. Drivers can then lower the charging cable on demand using the app.

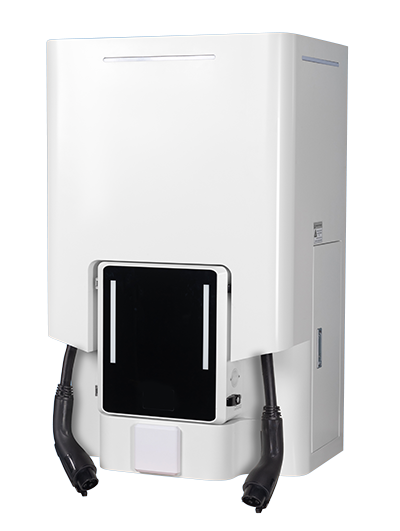

A white electric vehicle charging station with two black charging cables against a blue background.

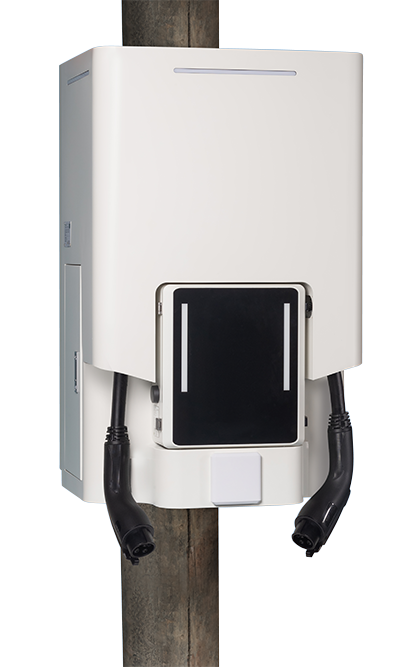

Electric vehicle charging station mounted on a pole against a blue background.

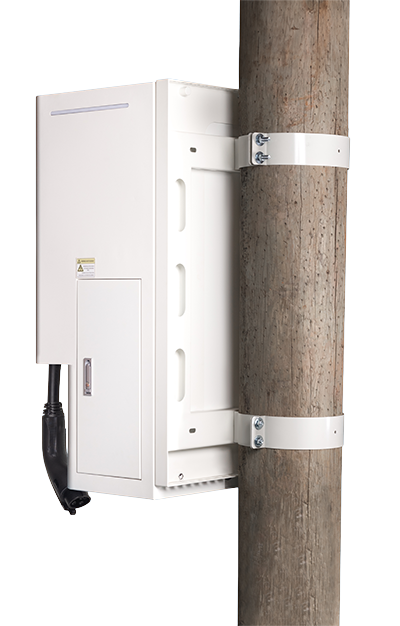

White electrical box mounted on a wooden pole with blue background.
  • Illustration of a green battery with a lightning bolt, symbolizing charging.

    L2 AC fast charger system. Up to 19.2 kW max power dynamically allocated between the two J1772 ports.

  • Green electric vehicle charging icon with a plug and lightning bolt.

    Output 208-240 VAC.
    Maximum Current: up to 80

  • green abstract icon with vertical lines

    Autorewind cable management system with drop-down connector (J-1772).
    Cable lenght 7m

  • Green speedometer icon with needle pointing at the top center, surrounded by a circular gauge.

    2 Embedded MC certified meters for metrological functions. Support for single or multi-tiered pricing capability for energy ($/kWh), idling time ($/min), and parking ($/min)

  • Green credit card icon with white horizontal lines representing card details.

    Activation via RFID card (RFID card and RFID 5 mt range sticker issued by T&G),

  • shuffle icon with crossed green arrows

    Mobile device app with T&G registered account or a QR code with a mobile device, or credit card by calling a toll-free number.

  • Green signal icon with three curved lines and a dot

    Embedded LTE modem for mobile network connection to an OCPP compliant SW network management.

  • Illustration of a green shield with a star and snowflake design

    Operating Temperature Range: -40°C to +50°C
    Safety Lighting
    Aluminum enclosure IP66.

INSTALLATION MANUAL (PDF) USER MANUAL (PDF)
