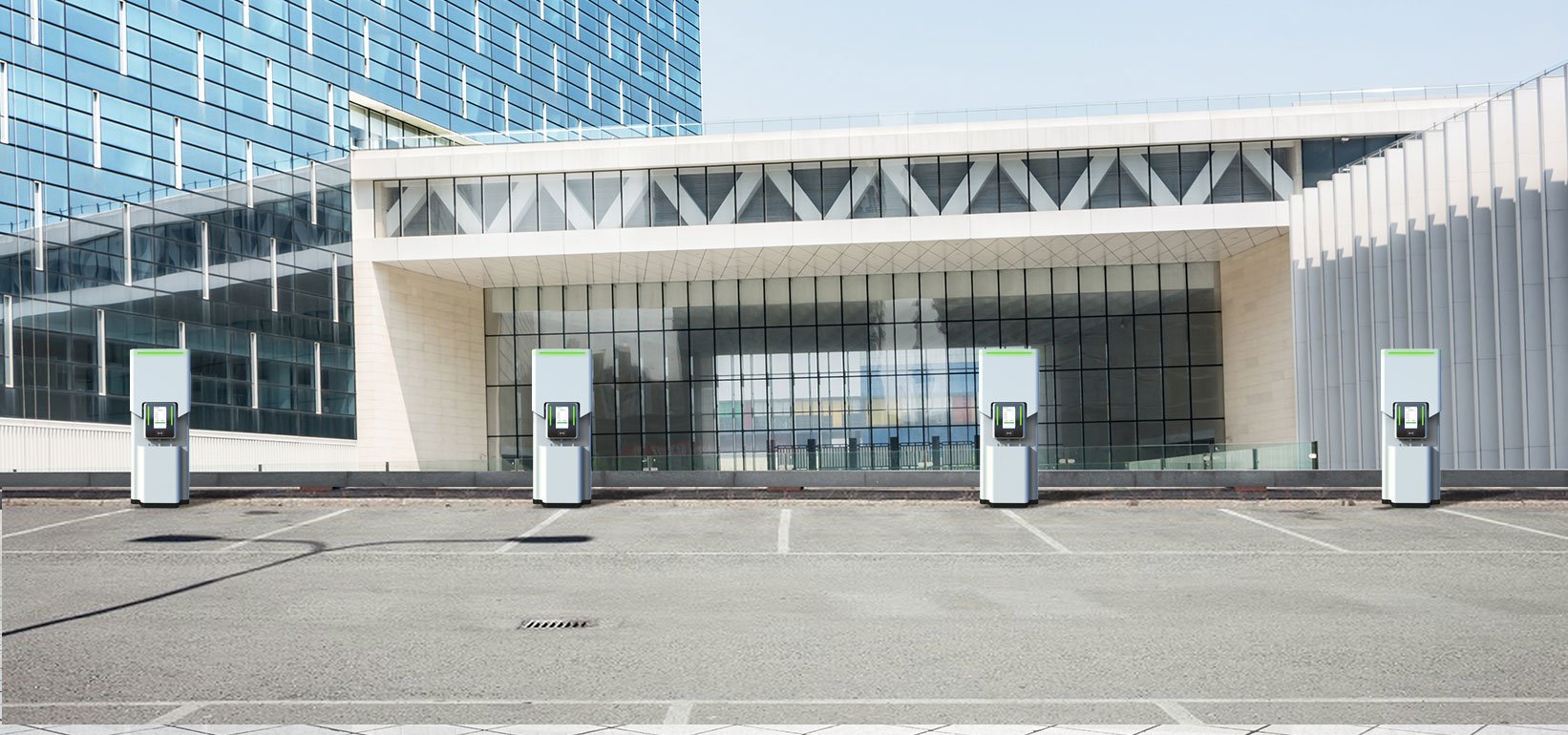

Pedestal EV Charger

Model: L2-CHRG-PED

The Everywhere family of chargers is a utility-grade, modular solution that can be configured for wall-mounted, pedestal, or pole-mounted installations, including both streetlight and utility distribution poles. This comprehensive system includes chargers, auto-rewind cable management systems, autotransformers, disconnect switches, and a range of accessories for seamless deployment.

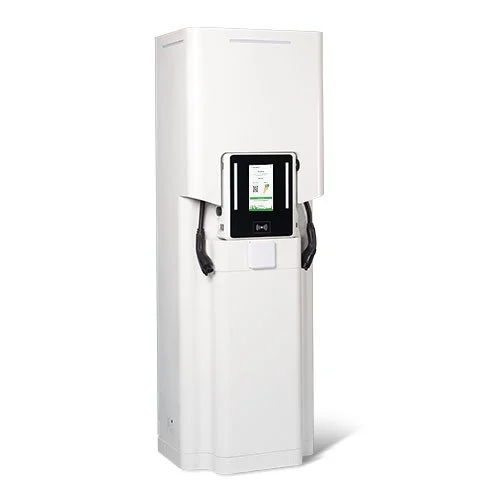

Electric vehicle charging station with a touchscreen interface on a white background.
Automated self-service kiosk with touchscreen interface
  • Green shuffle icon with crossed arrows

    Mobile device app with T&G registered account or a QR code with a mobile device, or credit card by calling a toll-free number.

  • Electric vehicle charging icon with plug and lightning bolt in green circle

    L2 AC fast charger system. Up to 19.2 kW max power dynamically allocated between the two J1772 ports. Output 208-240 VAC. Maximum Current: up to 80

  • Green hand tapping on screen icon with concentric circles

    Large 10" color touch screen LCD display

  • Green speedometer icon with needle pointing to the center

    2 Embedded MC certified meters for metrological functions. Support for single or multi-tiered pricing capability for energy ($/kWh), idling time ($/min), and parking ($/min)

  • Green icon of a credit card with horizontal lines

    Activation via RFID card (RFID card and RFID 5 mt range sticker issued by T&G),

  • abstract green logo with vertical bars

    Autorewind cable management system with drop-down connector (J-1772).

  • Green wireless signal icon with a dot and curved lines

    Embedded LTE modem for mobile network connection to an OCPP compliant SW network management.

  • Green shield with starburst and snowflake design

    Operating Temperature Range: -40°C to +50°C
    Safety Lighting
    Aluminum enclosure IP66.
