Power Core

Model: L2-CHRG-S-M02

The Power Core is a dual-port Level 2 charger ideal for parkades, shared lots, and fleet yards. It’s built for reliable everyday use in both residential and commercial settings.

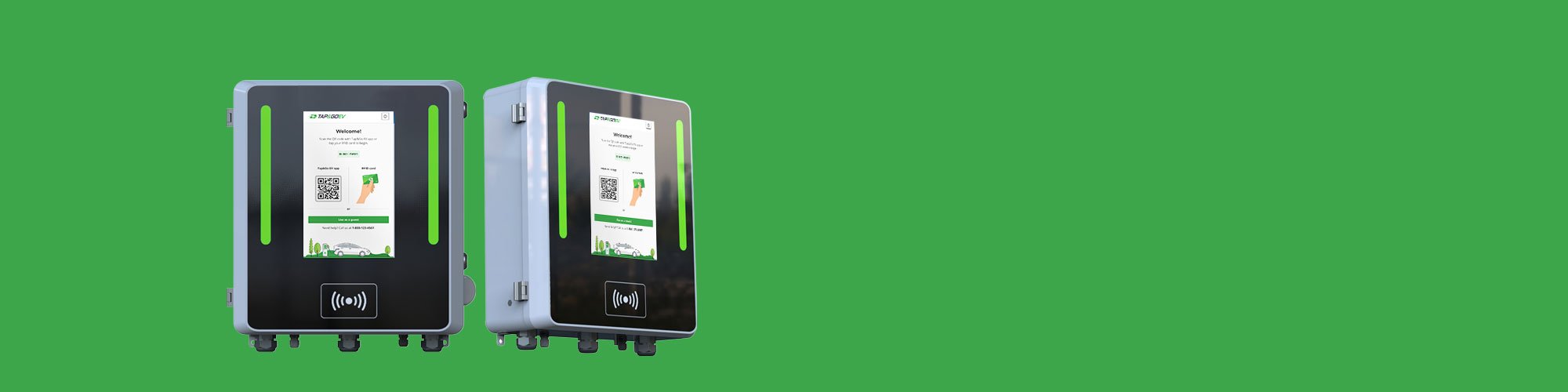

Electric vehicle charging station interface with QR code and contactless payment icons, featuring a display screen and sleek design.
Electric vehicle charging station with QR code and digital screen interface.
  • Green battery icon with a lightning bolt symbol indicating charging.

    L2 AC fast charger system. Up to 19.2 kW max power dynamically allocated between the two J1772 ports.

  • Green electric vehicle charging symbol with a plug and lightning bolt inside a circle

    Output 208-240 VAC.
    Maximum Current: up to 80

  • Green hand touching circular button icon

    Large 10" color touch screen LCD display

  • Green speedometer icon

    2 Embedded MC certified meters for metrological functions. Support for single or multi-tiered pricing capability for energy ($/kWh), idling time ($/min), and parking ($/min)

  • Green credit card icon with white lines

    Activation via RFID card (RFID card and RFID 5 mt range sticker issued by T&G),

  • green shuffle icon with crossed arrows

    Mobile device app with T&G registered account or a QR code with a mobile device, or credit card by calling a toll-free number.

  • Green wireless signal icon with three curved lines

    Embedded LTE modem for mobile network connection to an OCPP compliant SW network management.

  • Green and light green shield with a stylized snowflake and star symbol

    Operating Temperature Range: -40°C to +50°C
    Safety Lighting
    Aluminum enclosure IP66.

INSTALLATION MANUAL (PDF) USER MANUAL (PDF)
Request a quote
